mprix3

Stereo:

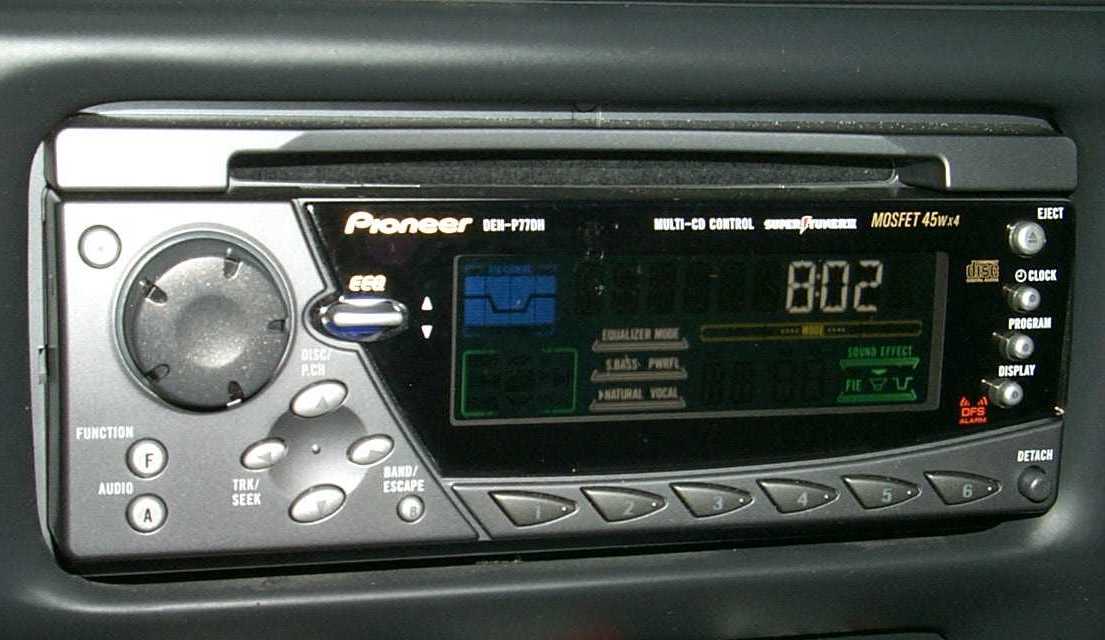

Pioneer DEH-P77DH GM/Chrysler Fit (Head Unit, Digital Crossover, 3 Preamp outs Front/Rear/Sub)

Pioneer Premier TS-C603 Component Speakers 6.5 inch mid and 1 inch tweeters and passive Crossover (Front in Doors)

Pioneer Premier TS-E6990 6x9 3-Way Speakers (Rear in Factory Location)

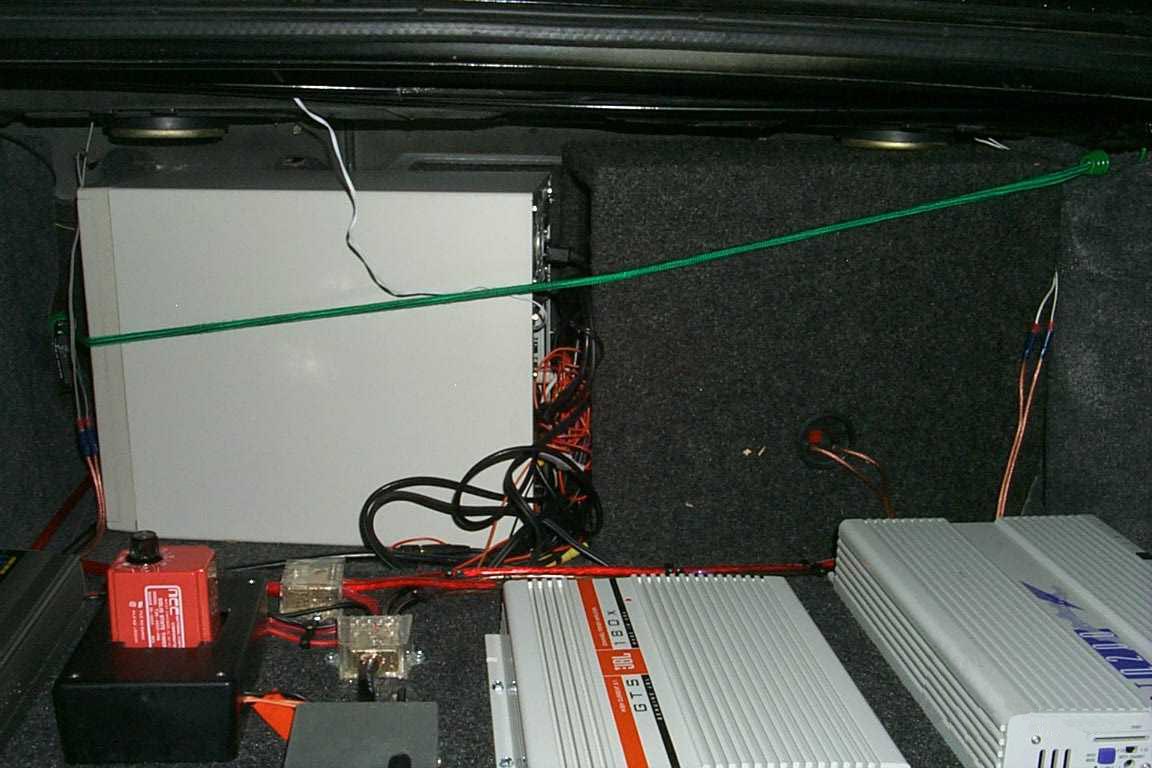

Pioneer Premier TS-W1040DVC 10 inch Dual Voice Coil Sub (In Sealed box in trunk)

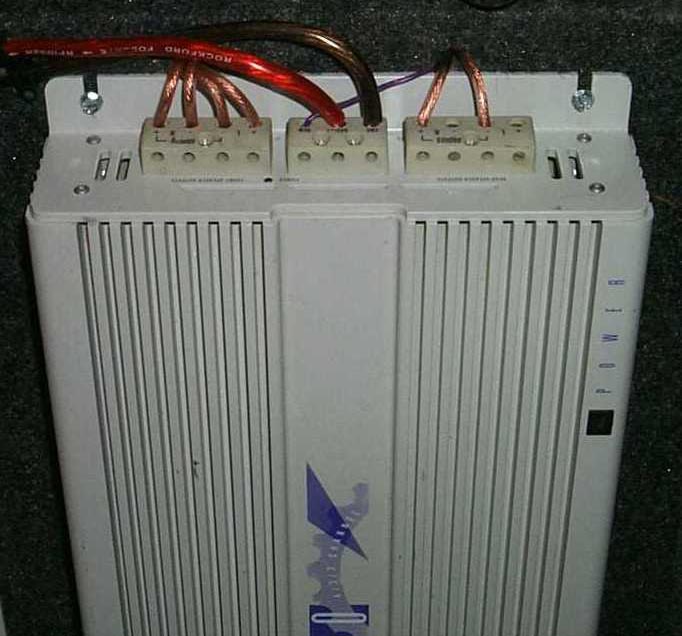

JBL Power GTQ 200 Watt 2/3/4 Channel Amp w/ Built In Crossover (Front Speakers and Sub)

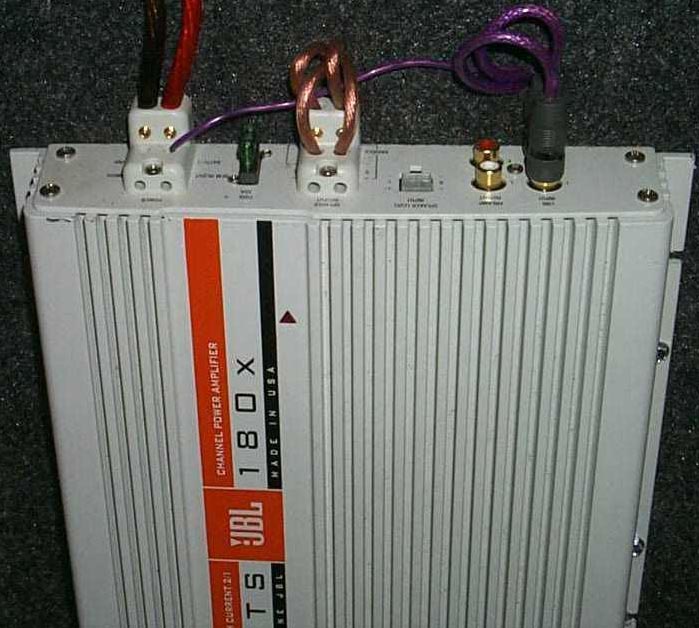

JBL GTS 180 Watt 1/2 Channel Amp w/ Built In Crossover and Line Output (Rear Speakers)

Rockford Fosgate

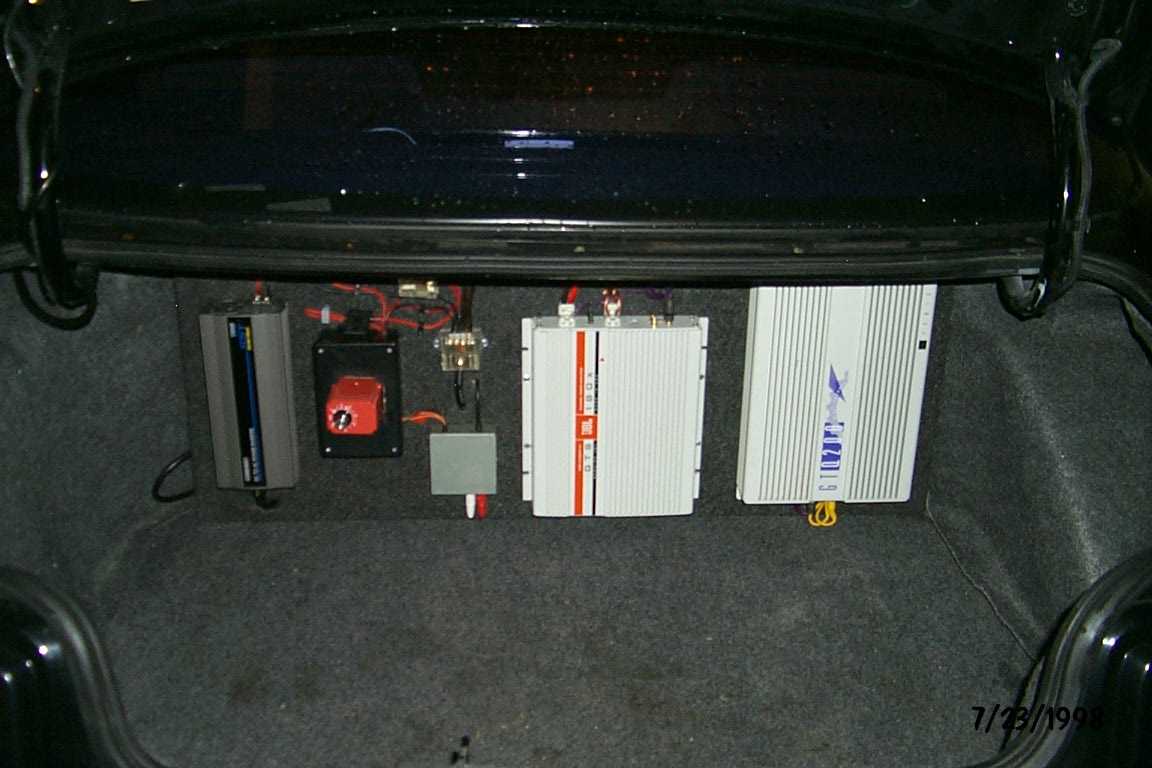

16 Ft 4 AWG Power Wire (from battery to amp Rack in Trunk)
10 FT 4 AWG Ground Wire (from amp rack to Trunk Lid bolt)
2 - 3ft 8 AWG Power Wires (cut and trimmed, from distribution block to amps)
2 - 3ft 8 AWG Gound Wires (cut and trimmed, from amps to distribution block)
2 - 1 input, 4 output, 4 AWG to 8AWG distribution blocks
2 16ft shielded Interconnects w/ remote wire
1 16ft shielded Interconnect w/o remote wire

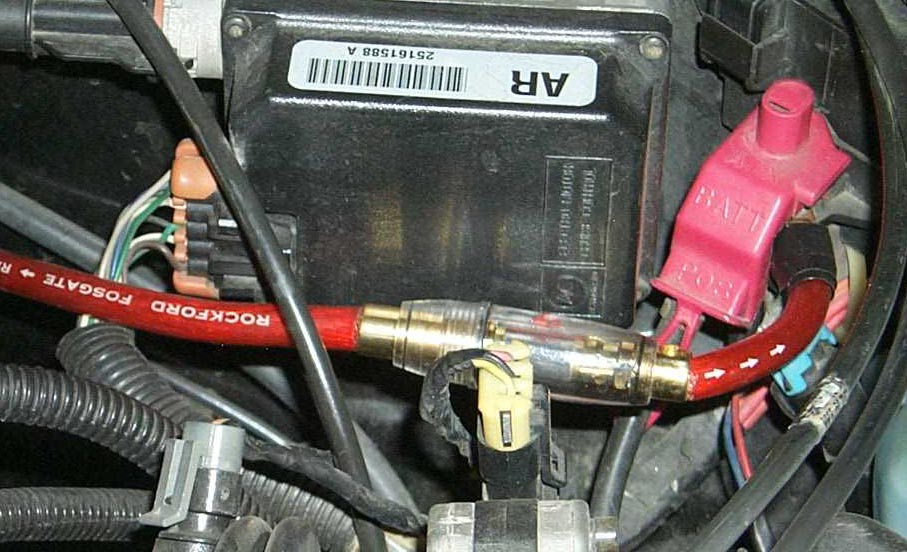

In-Line 30 Amp Fuse and Holder (on battery wire near battery)
Battery Wire Power Ring
Ground Wire Power Ring
16 Gauge Speaker Wire for all speakers (to all speakers from amps)

Pioneer CD-RB20 Audio Input Adaptor (For Audio Input from PC)

Pioneer CD-IP600 600cm IP-Bus Cable (From Adaptor to Head Unit)

Soundgate Remote 1.5 (Steering Wheel Remote Adapter)

MP3 Player:

PC:

Pentium II 350

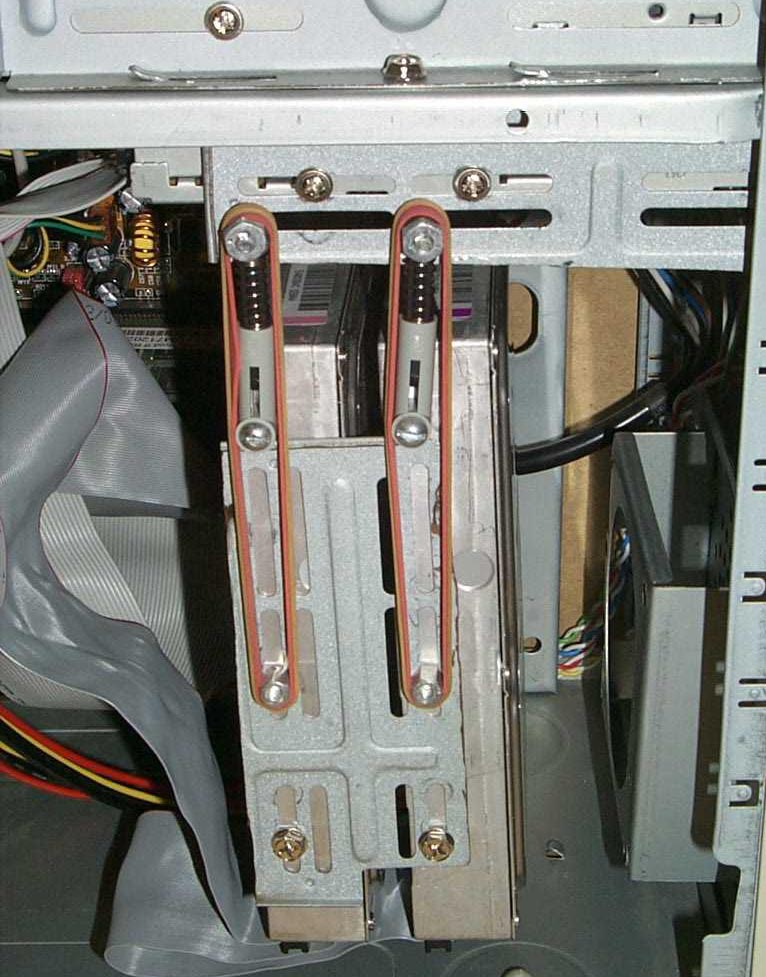

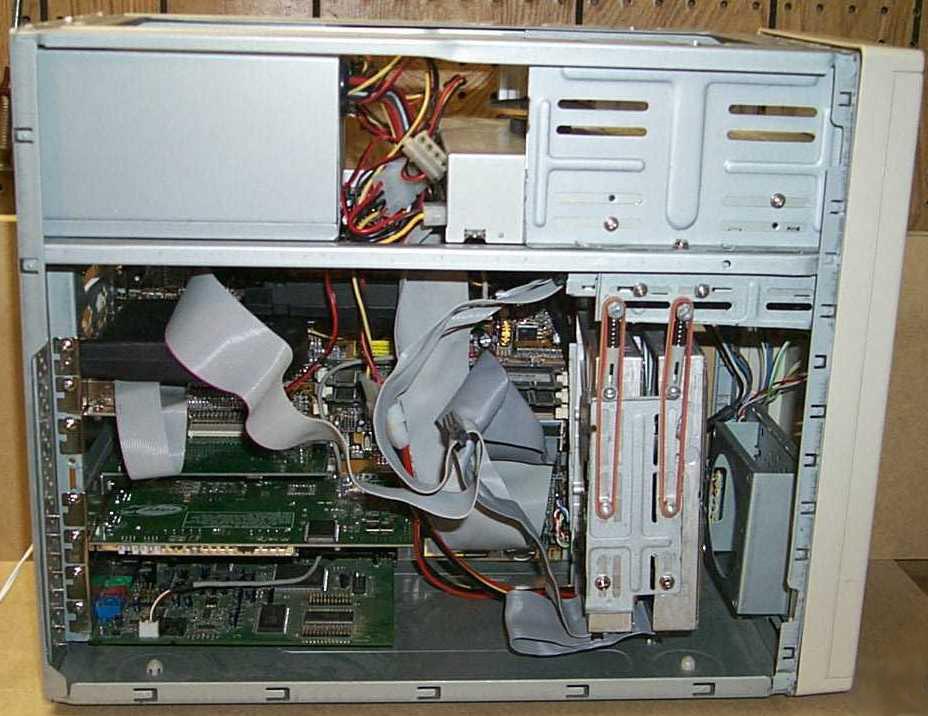

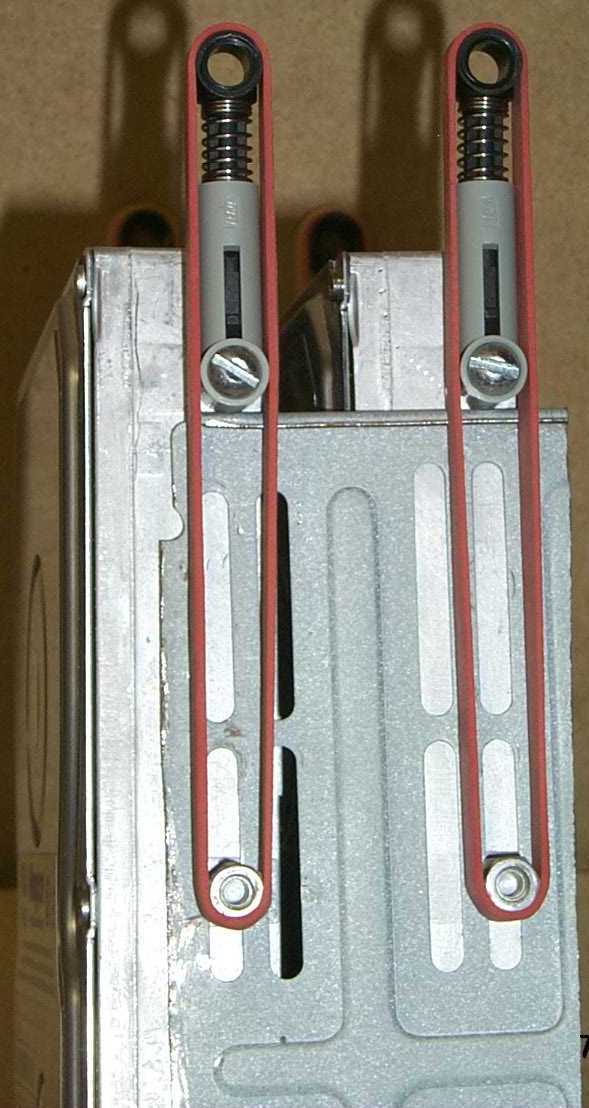

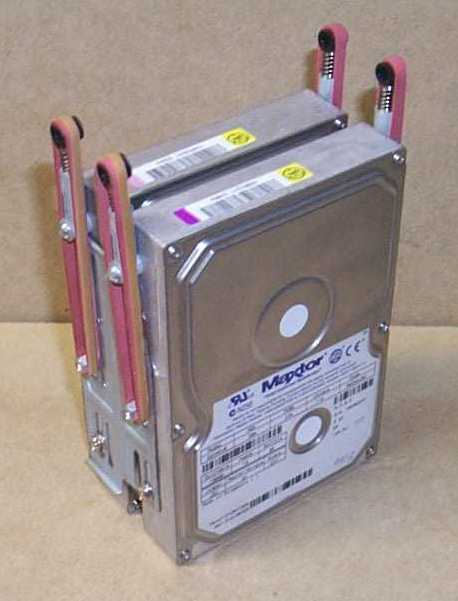

Custom Built Internal Shock Absorption System Holding:
17 Gig Main Drive
20 Gig Secondary Drive

DVD-ROM
Floppy
SCSI Controller (For DVD-ROM addition later. Most likely in Dash)
11 Mps Linksys Wireless Network PCI Card
Creative Soundblaster AWE 64 Gold Sound Card (Sound output to CD-RB20)
Two Rear Slot 42 CFM Ultra Quiet Case Fan

Software:

Windows 98 with Custom Registry Settings
Winamp by Nullsoft
WinDVD by InterVideo

Monitor:

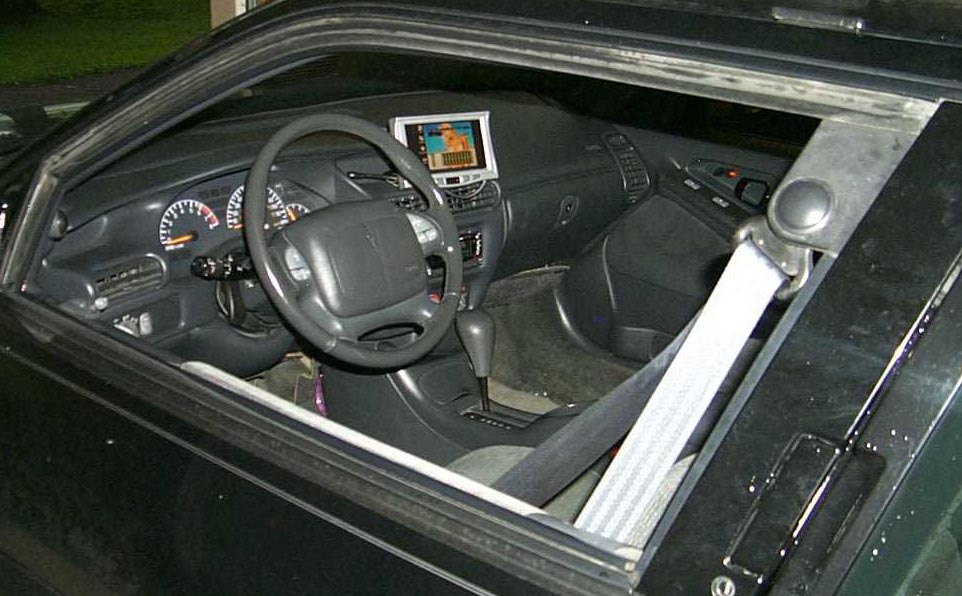

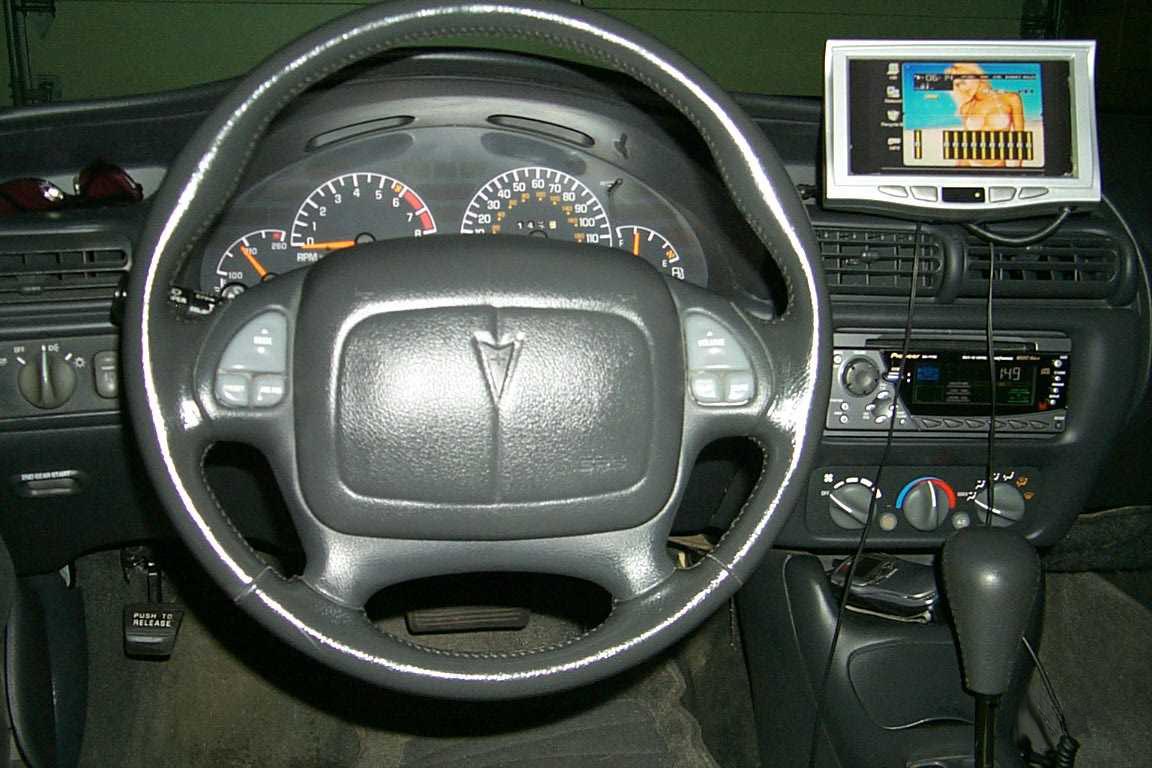

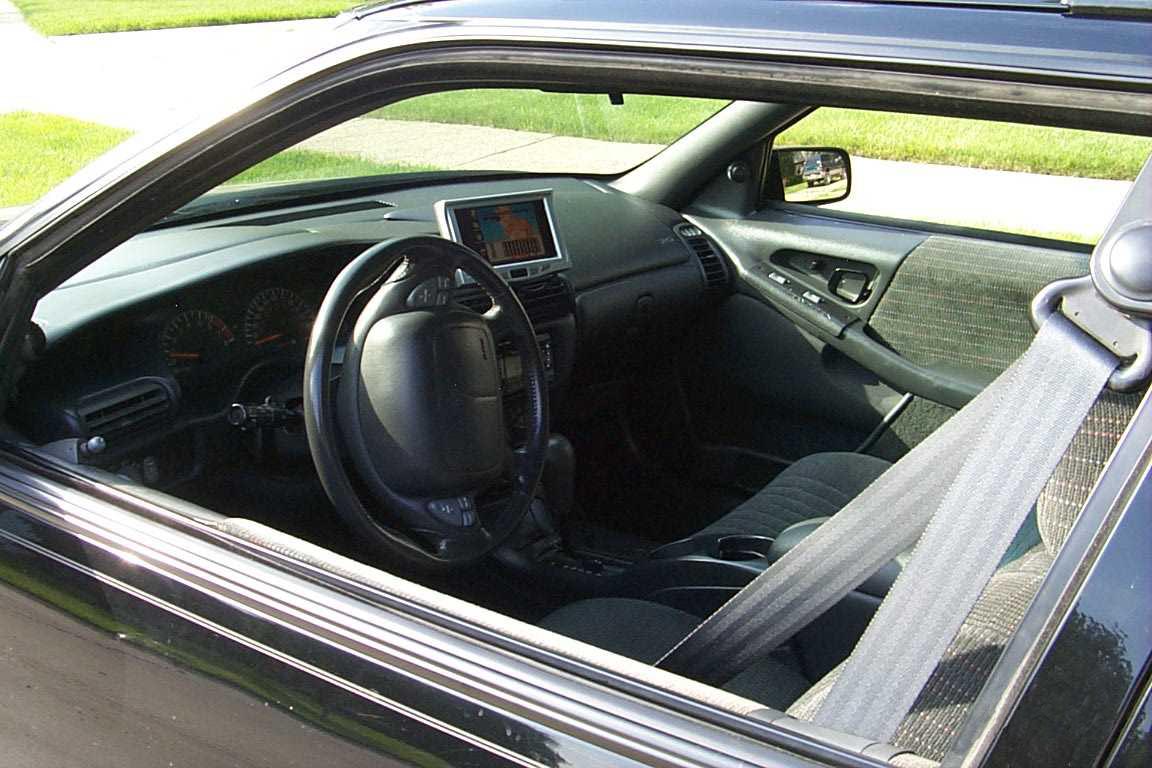

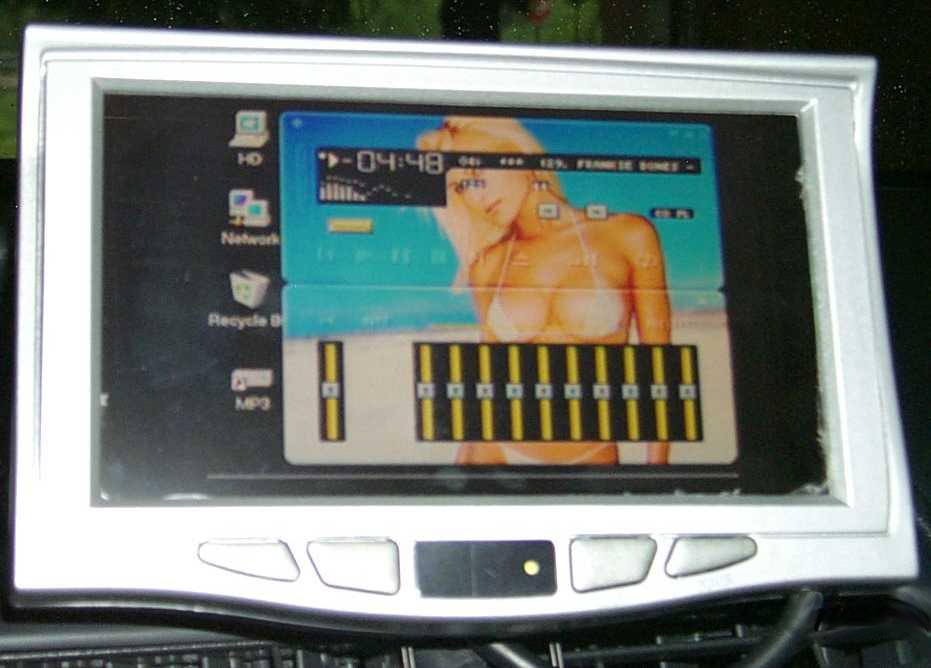

Mobile Authority M70 7in High-Res Wide Screen LCD Monitor (Mounted on Dash. Power wired to ignition)
Includes 20 ft. 10 pin mini-din interconnect (between monitor and trunk for power, video, sound, etc.)

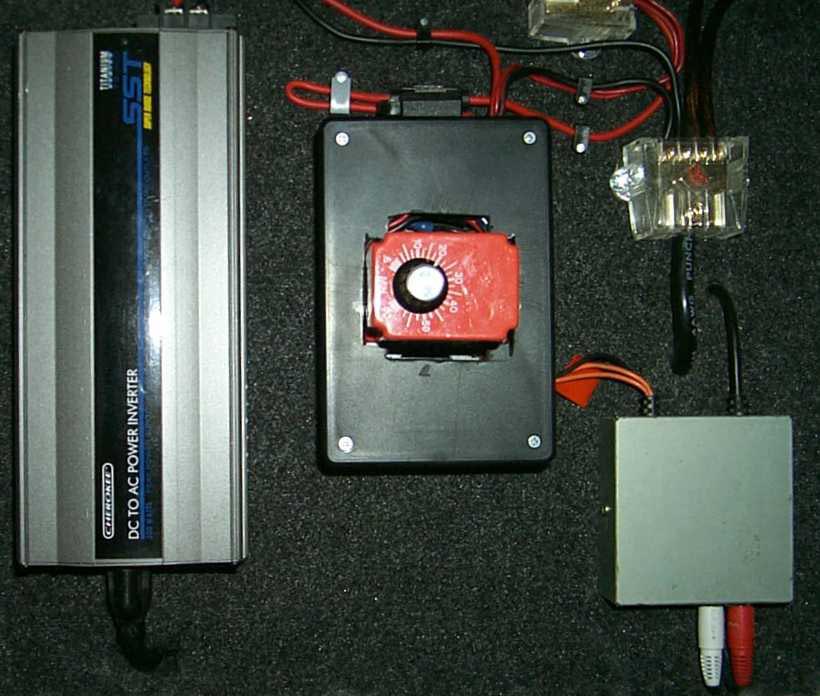

Grandtec Ultimate 2000 VGA Converter Power Supply:

300 Watt/ 800 Watt Surge, Cherokee Power Inverter (power for PC with low battery shutdown capability)

Custom Built Controller for Power Supply (currently kills power after ignition is off for 20 minutes):
30 amp SPST relay (linked to ignition loop and closes switch on timer relay)
10 amp Delay-on-Break DPDT Timer Relay 1-60 minute settings. (closes 70 amp relay)
70 amp SPST relay (on input power line to Power Inverter)

Controls:

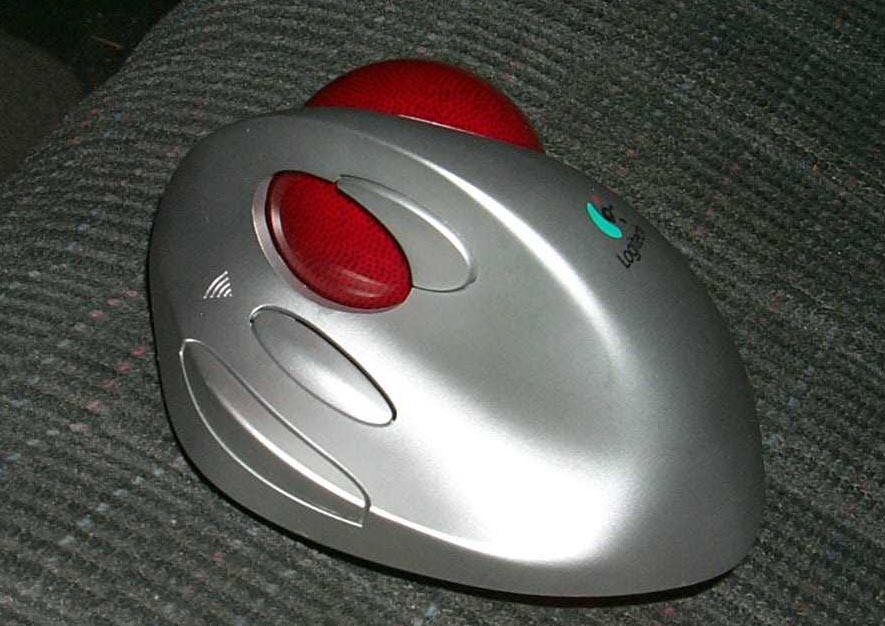

Logitech Cordless Trackman Marble FX Optical Trackball
Cordless Keyboard

Other Components:

2 - 6ft keyboard/mouse extension cords (from PC to console)
1 - 20 ft headphone extension (for future auxiliary headphone outputs from PC to rear seats out of console)
Ignition Fuse 1-2 expander (provides an auxiliary fused ignition wire from fuse box)
20 ft 18 AWG orange wire (ignition feed to power supply)
1/8" jack to RCA adapter cable (from PC to CD-RB20)

Future Upgrades:
In-Dash DVD
GPS
